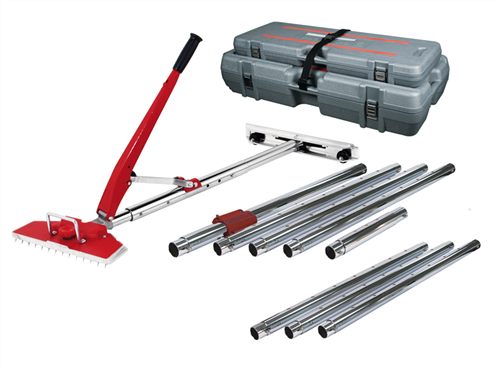

Roberts 10-254V Power-Lok Stretcher Value Kit
Roberts 10-254V Power-Lok Stretcher Value Kit. Key benefits include:
- The most advanced power stretcher available
- 17 different "stretch/pattern holding" positions for the Power-Lok swivel head
- Unique swivel head for extending angles or corners
- Adjustable pin penetration for different carpet thicknesses
- Low profile head with side kicking platform
- Steel handle on head for better grip and repositioning
- Standard 18-inch tail block includes a foam wall protector and wheels for easy repositioning
- Stretch up to 38 feet and up to 23-1/2 inches with the standard set
Roberts 10-254V Power-Lok Stretcher Value Kit Replacement parts:
- 10-250-01A Red Plastic Head Cover & Steel Handle with Screws and Washers
- 10-250-02 Screws and washers for head cover (50)
- 10-250-03 Height adjusting bar assembly
- 10-254-04 Head mounting knob
- 10-250-05 Main body assembly with nylon & bronze bushings
- 10-254-06 Head mount assembly
- 10-250-06B Head Mount Bracket with Screws (5) (not shown)
- 10-250-07 Head pivot assembly consisting of 1 pivot tube, 1 stud, 2 nuts, and 2 bushings
- 10-250-12 Link pivot assembly (sold separately consists of 1 pivot tube, 1 stud, 2 nuts and 2 bushings)
- 10-254-13 Complete pin plate assembly head cover, thrust bearing, height adjusting bar, screws & washers
- 10-250-14 Nylon bushings (1 pair)
- 10-254-14 Saddle
- 10-254-17 Retainer plate & screws
- 10-254-18 Complete locking handle assembly
- 10-254-19 Actuator rod
- 10-254-50 Power Assembly Unit
- 10-254-20 C Clips (2) + Bushing (2) + PIN (1)
